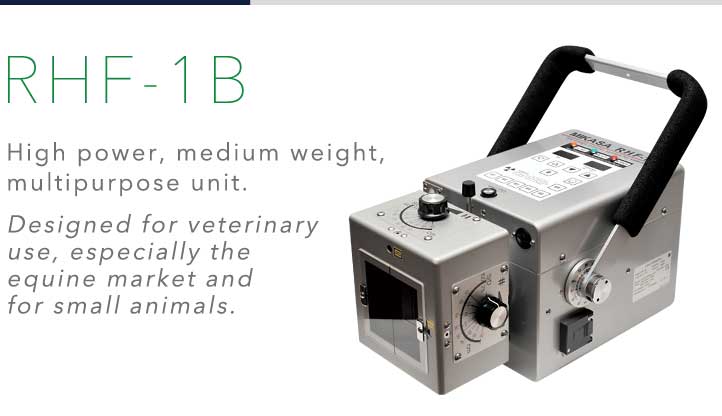

RHF-1B

High power, medium weight, multipurpose unit. Designed for veterinary use, especially the equine market and for small animals.

The RHF-1B is Mikasa's 100kV model. The unit has 5 memory stations for storing x-ray exposure techniques. It is compatible with all major DR digital systems. A dual laser pointer in the collimator centers to align your SID. It is recommended for all-around practices and purposes including; equine, mixed, small animals and zoos.

Page Top

Model
RHF-1B portable x-ray unit
Max.output power
2.5kW
Line voltage
AC, single phase, 230V, 50/60Hz
Focal spot
1.2mm × 1.2mm
kV range
40kV-100kV (2kV step)
mA range
40mA@40-60kV, 35mA@62-70kV
30mA@72-80kV, 25mA@82-100kV
Timer
0.01-1.5sec
Memory storage
5 presets
Laser pointer
Dual laser

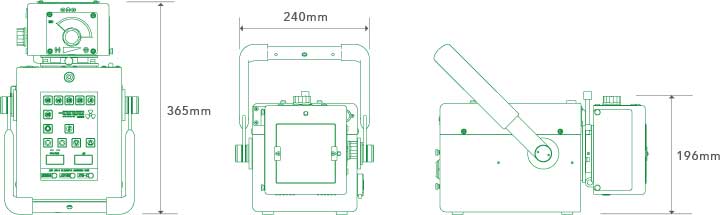

Size・Weight
L365×W240×H196mm 11.2kg
Accessories
Power cord/Hand-held exposure switch and cord

Page Top

●Please contact us for details.
