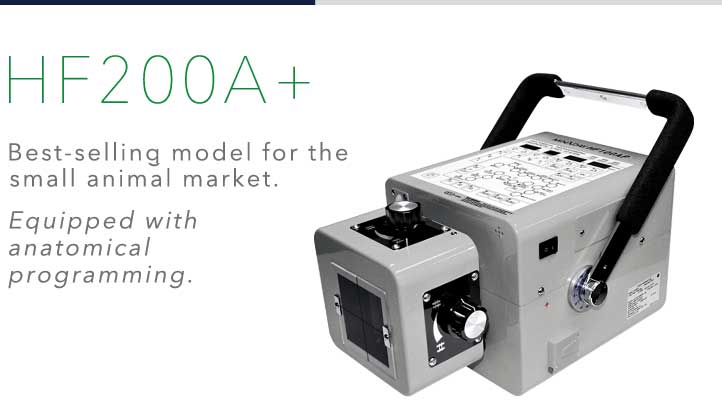

HF200A+

Best-selling model for the small animal market. Equipped with anatomical programming.

The HF200A+ is easy to operate with over 1200 anatomical programmed values for dogs, cats, birds and small animals. The program settings include; body part thickness, body part density, FFD range, pregnancy, and radiography with or without an X-ray grid. All settings can be adjusted manually. Programs can be adapted to all major types of film speed.

Model
HF200A+ portable x-ray unit
Max.output power
2.5kW
Line voltage
AC, single phase, 230V, 50/60Hz
Focal spot
1.2mm × 1.2mm
kV range
30kV-100kV (2kV step)
mA range
40mA@30-60kV, 35mA@62-70kV
30mA@72-80kV, 25mA@82-100kV
Timer
0.01-2.00sec
Memory storage
Anatomical program
Laser pointer
Dual laser(Optional)
Size・Weight
L400×W290×H230mm 16.2kg
Accessories
Power cord/Hand-held exposure switch and cord
