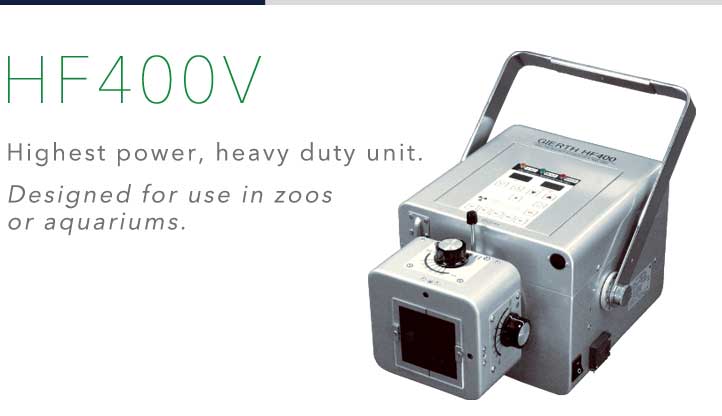

HF400V

Highest power, heavy duty unit. Designed for use in zoos or aquariums.

The HF400V is Mikasa's most powerful veterinary unit generating the maximum 100mA and maximum 120kV. The unit has 5 memory stations for storing x-ray exposure techniques. It is compatible with all major DR digital systems. A dual laser pointer in the collimator centers to align your SID. It is recommended for all-around practices and purposes including; equine, mixed, small animals, zoos and aquariums. The high power makes it the perfect choice for especially large animals.

Page Top

Model
HF400V portable x-ray unit
Max.output power
6.0kW
Line voltage
AC, single phase, 230V, 50/60Hz
Focal spot
1.2mm × 1.2mm
kV range
40kV-120kV (2kV step)
mA range
100mA(0.01-0.1sec),70mA(0.11-2.0sec)@40-50kV
80mA(0.01-0.1sec),56mA(0.11-2.0sec)@52-60kV
70mA(0.01-0.1sec),49mA(0.11-2.0sec)@62-80kV
60mA(0.01-0.1sec),42mA(0.11-2.0sec)@82-100kV
40mA(0.01-0.1sec),28mA(0.11-2.0sec)@102-120kV
Timer
0.01-2.00sec
Memory storage
5 presets
Laser pointer
Dual laser(Optional)

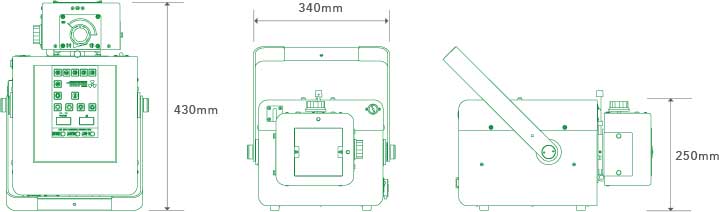

Size・Weight
L430×W340×H250mm 21.8kg
Accessories
Power cord/Hand-held exposure switch and cord

Page Top

●Please contact us for details.
