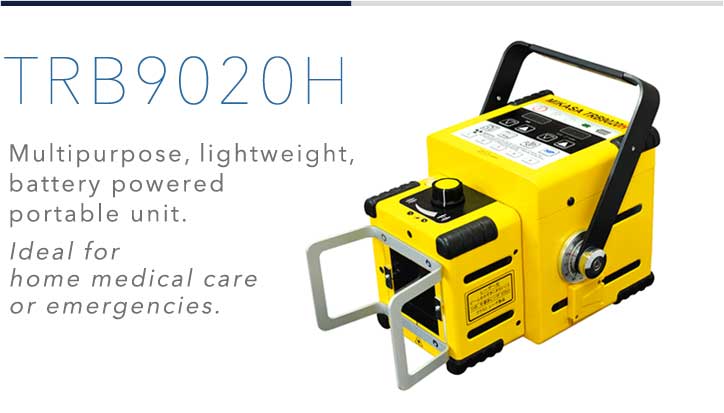

TRB9020H

Multipurpose, lightweight, battery powered portable unit. Ideal for home medical care or emergencies.

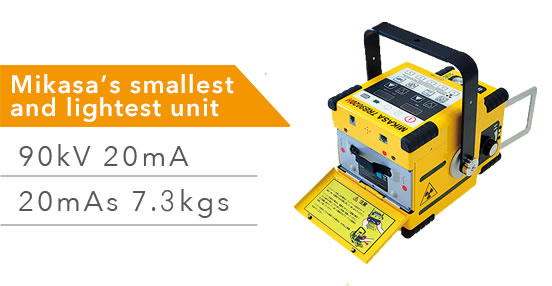

The TRB9020H is a battery powered, compact, lightweight unit(7.1kg including battery). The unit employs our detachable battery system to enable continuous use. A dual laser pointer in the collimator centers to align your SID. The unit is capable of making approximately 200 exposures per charge. The battery can be charged from a vehicle's power socket using an optional DC to AC power inverter.

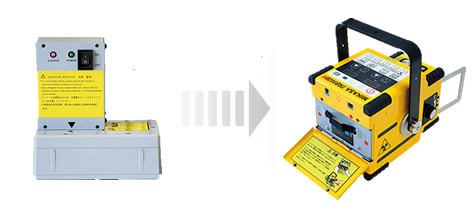

●Battery

The unit includes one detachable battery. If many exposures are needed and to enable continuous use we recommend the optional purchase of a spare battery.

Page Top

●Carrying case

A hard carrying case is available for safe and easy transportation.
Size:W390mm×D261mm×H310mm
Weight: 12.3kg (including X-ray unit)

Page Top

Model
TRB9020H Battery powered portable x-ray unit
Max.output power
1.35kW
Line voltage
DC, 59.2V
Focal spot
0.8mm × 0.8mm
kV range
40kV-90kV (2kV step)
mA range
20mA@40-60kV, 15mA@62-80kV
10mA@82-90kV, High power mode:15mA@82-90kV
Timer
0.01-1.00sec, High power mode: 0.01-0.31sec
Memory storage
5 presets
Laser pointer
Dual laser
Size・Weight

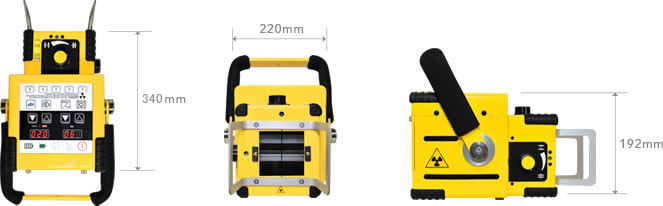

L321×W220×H192mm 7.1kg
Accessories
Battery/Battery charger/Hand-held
exposure switch and cord
Remarks
The product complies with
the Japanese Pharmaceutical Affairs Law.

Page Top

● MS-Ⅲ for TRB9020H/V,HF8015H,HF8020V

The MS-Ⅲ is a mobile x-ray stand that is easy to dismantle for maximum portability.

This is a lightweight and compact stand. A gas spring balance system facilitates easy and smooth vertical movement. It is easy to assemble and store. A carrying case is available for easy transportation.

In addition to hospital use, this stand is suitable for disaster medical care, home medical care, mobile clinic vehicles, doctors' cars and ambulances.

Page Top

● Carrying cases for MS-Ⅲ

A choice of soft or hard carrying cases are available. These cases provide safe, compact storage of the disassembled parts of MS-Ⅲ x-ray stand enables easy transportation. They are both mounted on casters.
