High power, multipurpose medical unit
Complies with U.S standards (FDA).
Features
Compact, High-Power Portable X-ray Unit
The HF100H+ is compact and lightweight enabling easy transportation.It is capable of taking exposures of most body parts using maximum 100 kV and maximum 30mA high frequency technology. The unit has 5 memory stations for storing x-ray exposure techniques. It is compatible with all major DR digital systems. It is recommended for hospitals, mobile clinics, military field clinics and nursing homes.
Specifications
| Model | HF100H+ portable x-ray unit |
|---|---|
| Max.output power | 2.0kW |
| Line voltage | AC, single phase, 115V or 230V, 50/60Hz |
| Focal spot | 1.2 |
| kV range | 40kV-100kV (2kV step) |
| mA range | 30mA@40-60kV, 25mA@62-80kV 20mA@82-100kV |
| Timer | 0.03-4.00sec |
| Memory storage | 5 presets |
| Laser pointer | Dual laser |

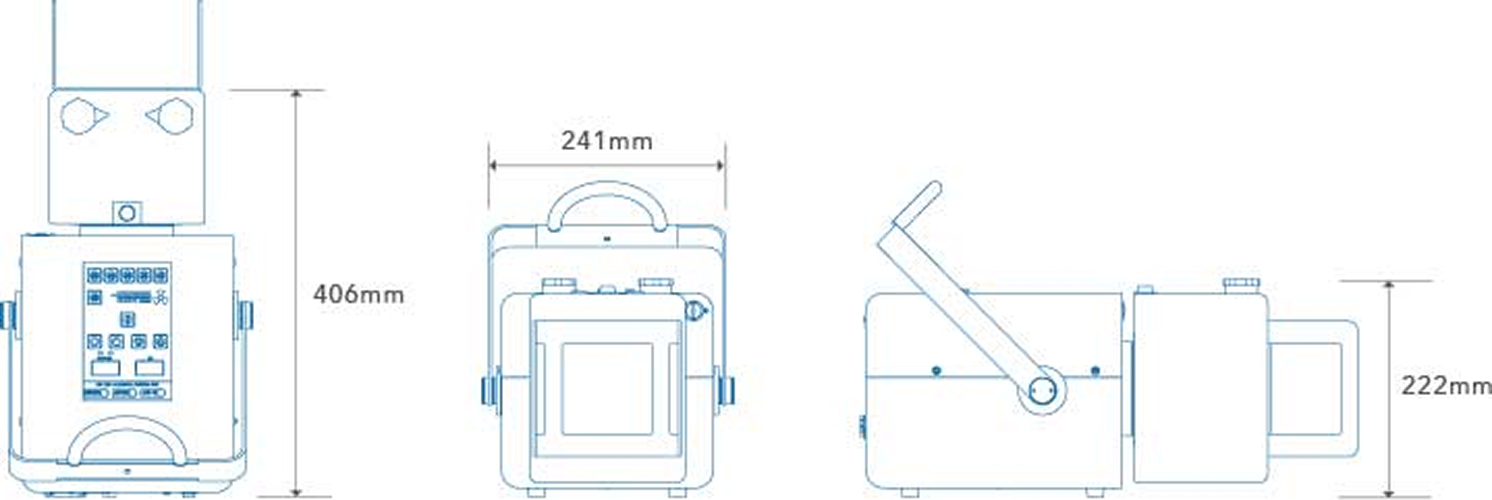

| Size · Weight | L406×W241×H222mm(without skinguard) 20kg |
| Accessories | Power cord/Hand-held exposure switch and cord |
| Remarks | FDA approval(U.S.) |
